TOMO-MAM 3D

Pure Imaging Phantoms

TOMO-MAM 3D


Enquire



This is a simple and efficient-to-use routine medical imaging test phantom which is used daily to evaluate the imaging performance of digital mammography systems. It complies with the EUREF Protocol for the Quality Control of the Physical and Technical Aspects of Digital Breast Tomosynthesis Systems. It has been manufactured from the highest purity and best quality PMMA.

It allows for evaluation of:

  • Automatic Exposure Control (AEC) checks
  • Geometric distortion
  • Signal-to-noise ratio (SNR)
  • Contrast-to-noise ratio (CNR)
  • Homogeneity
  • Z-resolution

Specification:

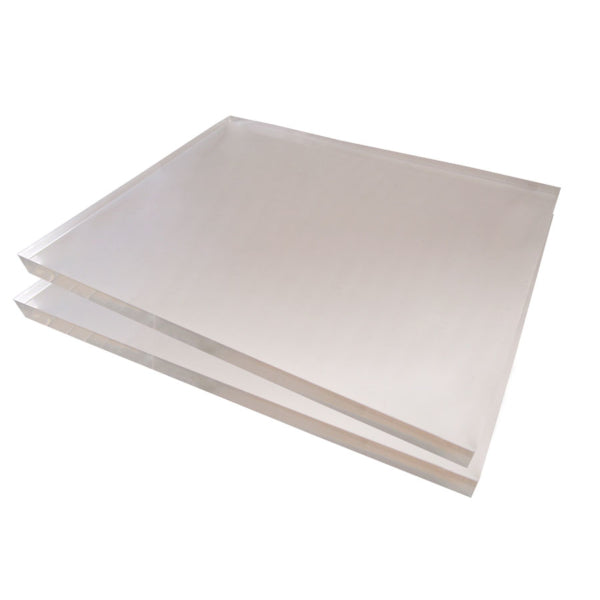

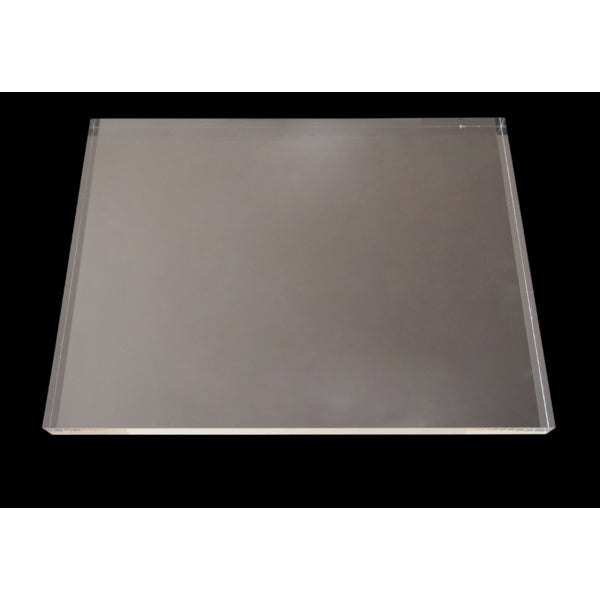

  • 1 PMMA plate 300 x 240 x 5mm with 25 embedded spheres (1mm dia.)
  • 1 PMMA plate 300 x 240 x 20mm with embedded 99.99% 10x10mm Al foil
  • 1 PMMA pate 300 x 240 x 5mm
  • 1 PMMA plate 300 x 240 x 10mm
  • 1 PMMA plate 300 x 240 x 20mm

Comes with:

  • Detailed user manual
  • Robust carrying case

Complies with:

  • EUREF Protocol for the Quality Control of the Physical and Technical Aspects of Digital Breast Tomosynthesis Systems
