PURE CDRH

Pure Imaging Phantoms

PURE CDRH


Enquire

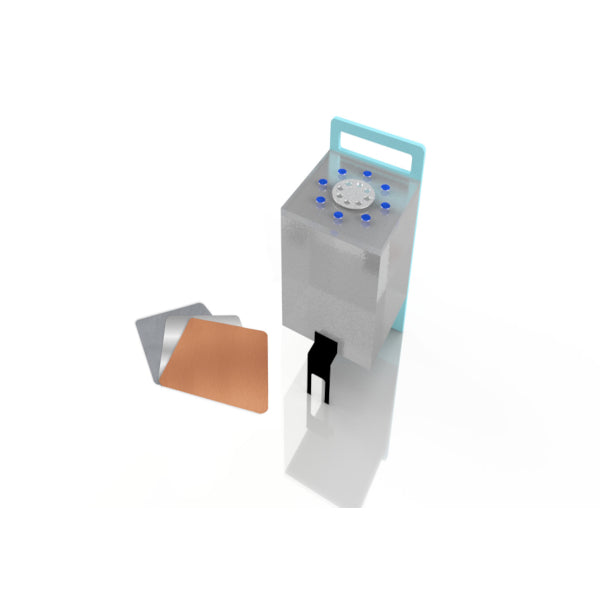

This is a simple and efficient-to-use routine medical imaging test phantom which is used daily to evaluate the imaging performance of fluoroscopic systems. The phantom is designed in accordance to Center for Devices and Radiological Health (CDRH) specifications.

It allows for evaluation of:

  • Measuring the dose
  • High and low-contrast resolution (Disc of aluminium with 8 low contrast disks and copper meshes for high contrast).

Specification:

  • Dimensions: 180 x 180 x 10mm
  • Resolution meshes available: 16 to 60 lines/inch, 30 to 100 lines/inch & 60 to 150 lines/inch
  • Probe holder leg

Comes with:

  • Copper, Lead and Aluminium filters
  • Detailed user manual
  • Robust carrying case

Complies with:

  • Nationwide Evaluation of X-ray Trends (NEXT) Protocol for 2003 Survey of Fluoroscopic X-Ray Systems
  • IEC 61223-3-1
  • AAPM Report No. 60 “Instrumentation Requirements of Diagnostic Radiological Physics”
