Fluorophan IQ

Pure Imaging Phantoms

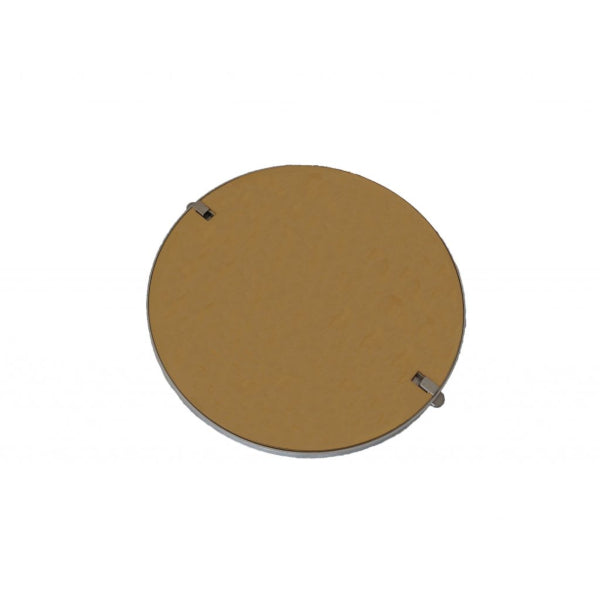

Fluorophan IQ


Enquire

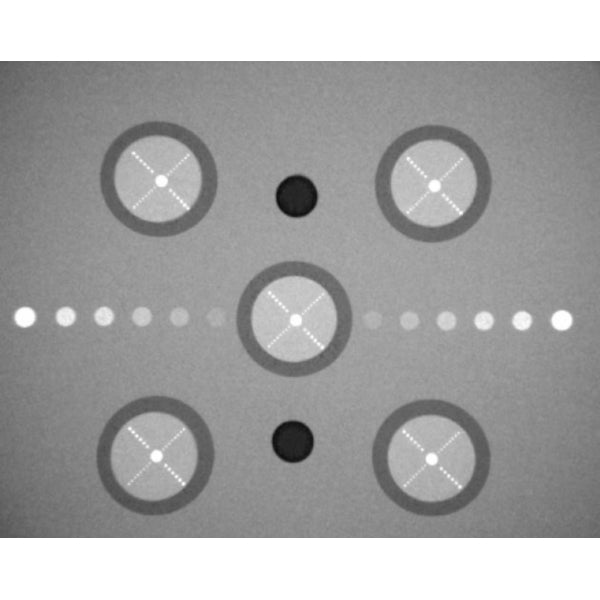

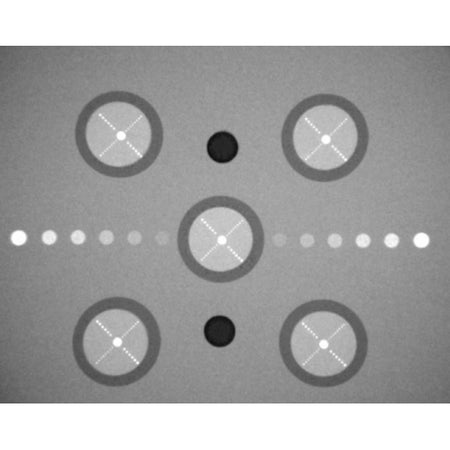

This is a simple and efficient-to-use routine medical imaging test phantom which is used daily to evaluate the imaging performance of fluoroscopic systems. You can simply check the grey-scale, count the number of contrast details and resolve the line patterns. If these numbers ever avert from the norm then this may indicate deterioration of image quality in your fluoroscopic imaging system.

Evaluates:

  • Dual grey scale for gamma and peak whites
  • Sweep linearity
  • Set black level
  • Resolution test pattern
  • Preamp frequency characteristics
  • Aperture correction
  • Automatic brightness system

Specification:

    • Diameter 250mm
    • Thickness 20mm

Comes with:

  • Attenuation plates
  • Detailed user manual
  • Robust carrying case for easy transport

Complies with:

  • IEC 61223-3-1
  • IPEM Report 91 (2005): Recommended Standards for the Routine Performance Testing of Diagnostic X-Ray Imaging Systems published by the Institute of Physics and Engineering in Medicine
