Blue Phantom³ Water Phantom

IBA Dosimetry

Blue Phantom³ Water Phantom


Enquire

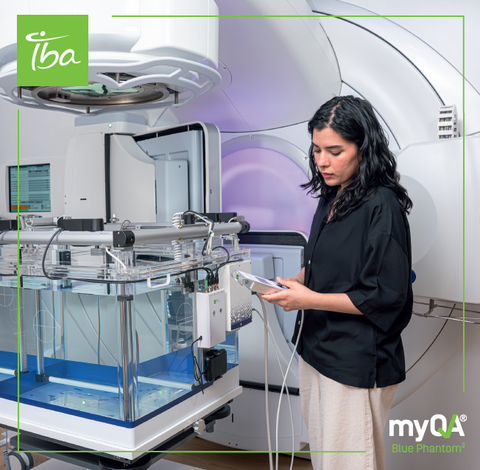

Blue Phantom³

Your advanced 3D water phantom for reliable beam scanning
Tailored for: Workflow Efficiency - Reproducibility - Compatibility

Quality beam scanning is the cornerstone for treatment planning and delivery accuracy.

The new Blue Phantom³ embodies decades of expertise, research and experience, providing the best in water phantoms.

Key Benefits, Innovations that count:

  • Compatible with all linacs: C-arm, bore-type, and robotic. No additional accessories required. Designed to simplify your workflow and support every setup.
  • Mechanical auto-leveling High precision system that is independent of the water surface, allows for levelling of the frame in seconds.
  • Retracted legs ensure a small footprint for easy transport through narrow spaces and storage.
  • Slanted bottom for complete draining of the tank.
  • Less time spent on setup and data acquisition.
  • Linear Diode Array enables 5 times faster beam profile scanning

Continuous scanning with higher sampling time

  • Certified +/- 0.1 mm accuracy for the entire scan range
  • Reduces setup time through automation and ergonomic design.
  • Pinpoint detector positioning throughout the lifetime with unique touch-less sensor technology
  • Global leader in supply, innovation and support of water phantoms
  • Over 50 years of experience
  • Over 4000 water phantom users worldwide

Faster Set-up, Validated Levelling


  • Full confidence in tank setup in just 2 minutes!
  • Blue Phantom³ ready for scanning in <20 mins.
  • No tank movement for levelling, no wave building. Efficiency and confidence without the need for additional confirmation

Measurement consistency in x and y

myQA CCU-X provides next-generation scanning with a built-in reference electrometer, fastest-in-class speed, and ultra-low noise for cleaner data.

Key Features

  • Complete new water phantom design, developed from scratch
  • Contactless magnetostrictive sensors in water phantoms: 0,1mm detector positioning accuracy without sensor degradation
  • < 20 min set-up
  • High precision controller in a very compact design, remote from destructive beam
  • Intuitive "all-in-one" hand control for the water phantom and the reservoir
  • Modular 3D water phantom customizable to your requirements
