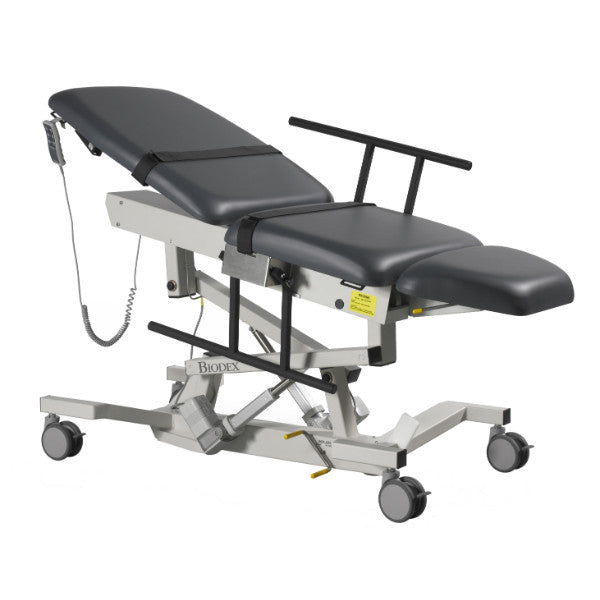

Ultra Pro™ Ultrasound Table

The Ultra Pro™ Ultrasound Table is the professional’s choice when performing general ultrasound procedures, including OB/GYN.  Now there is even more reason to choose an Ultra Pro Ultrasound Table.

Enhancements to the ergonomics reduce sonographer fatigue and require less patient repositioning, making it easy to achieve quality images in less time.

The redesigned Fowler back which provides the utmost patient comfort, an enhanced central floor-locking system offering easier access from around the table and an antimicrobial vinyl mattress ensuring safety against infection are all standard on the Ultra Pro.

Customization is made possible with optional items including: flush mounted side rails allowing complete patient access and safety, retractable stirrups with enhanced contouring and extra-long extension for taller patients, an articulating scanning arm board and a headrest extension that drops down 15 degrees to allow for carotid studies.

Suitable Procedures

Abdomen Aorta Endovaginal** Hysterosonography Testicular Musculoskeletal DVT/Lower Extremity Venous* Venous Reflux* Upper Extremity Venous Renal Transplant SMA

Renal Pelvis OB Thyroid Breast Carotid Lower Extremity Arterial Upper Extremity Arterial** Renal Artery Abdominal Doppler Transesophogeal Echo

• Ergonomic design for enhanced patient and sonographer comfort
• 500-lb patient capacity, suitable for bariatric patients
• Drop-down, contoured leg section
• Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
• Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
• Motorized height, Fowler positioning, Trendelenburg and auto-level adjustment
• Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
• Central floor-locking system maintains table stability
• Durable hand controller activates table positions
• Allows seated or standing work positions



Optional

• Foot Controller is ideal for when hands are busy with other functions

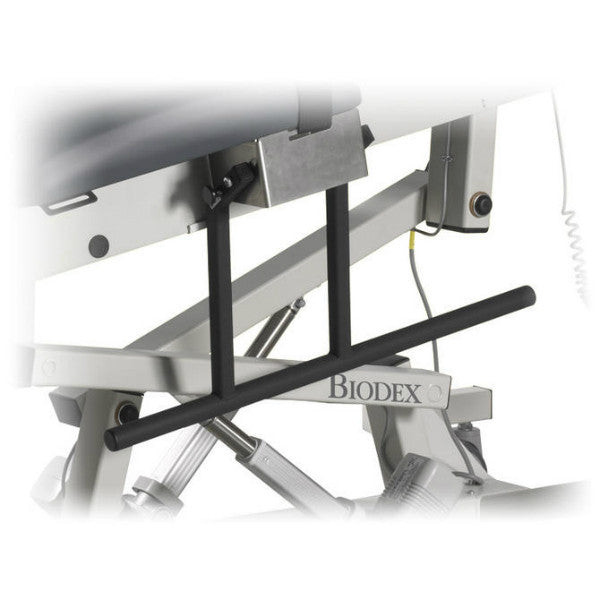

• Redesigned side rails flush to table for unencumbered patient access
• Enhanced stirrups, designed to cup at the heel for added comfort
• Articulating Scanning Arm Board, adjustable from 0 to 130 degrees

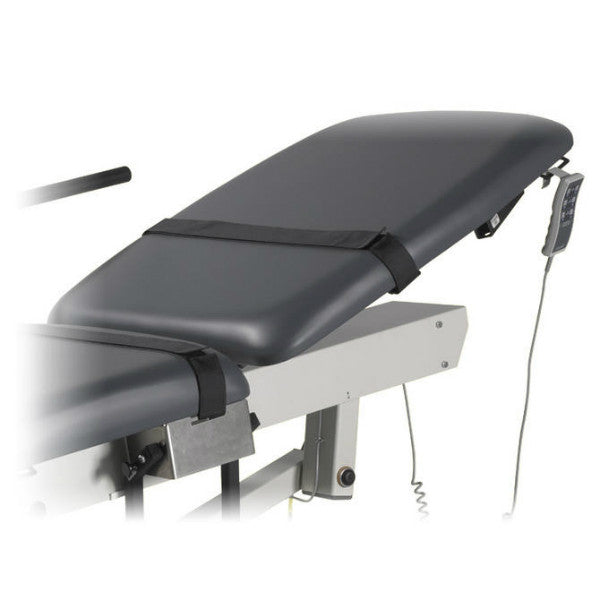

• Headrest extension for easier thyroid and carotid access
• IV Pole easily attaches for quick convenience
• Paper Dispenser accommodates a roll of hygienic table paper. Includes a cutter strap.

• Dimensions:
  - Overall: 70" l x 30" w (177.8 x 76.2 cm); 35" w (88.9 cm) with optional side rails
  - Drop-Down Leg Section: 12.6" l (32 cm)
• Motions:
  - Height Adjustable: 23" to 39" (58.4 to 99 cm)
  - Trendelenburg: 0° to ±15°
  - Fowler Back: 0° to 80° infinitely adjustable
• Controls:
  - Hand Control: Activates height, Trendelenburg motions,
  - Fowler positioning and auto level motions
  - Foot Control (optional): Activates height, Trendelenburg motions,
    and Fowler positioning
• Wheels: 5" (12.7 cm) Individual locking swivel casters; central floor-locking system
• Tabletop: Three primary sections: torso section with Fowler positioning, center section remains fixed and leg section drops down to 40° and 80° for stirrup access
• Mattress: Torso section 2" (5 cm) thick, center and leg sections 3" (8 cm) thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
• Upholstery Color: Graphite

• Patient Restraints: Two body straps
• Finish: Powder coat
• Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
• Weight: 335 lb (152 kg)
• Power: 115 VAC or 230 VAC
• Warranty: Two-year

• Certifications: ETL and cETL Listed to UL60601-1 and CAN/CSA C22.2
  No. 601.1-M90 and EN 60601-1 standards.
