Tabletop Shield

Biodex

Tabletop Shield


Enquire



For Beta and Gamma Radiation

This Tabletop Shield provides protection while working with mid to low-energy beta and gamma radioactive materials. The shield is designed to resist tipping and incorporate shielding overlap to eliminate radiation streaming. The entire interior work surface is one continuous piece of steel designed with a built in splash tray containing a spill proof lip for fast, contained clean up.

The front wall of the shield is constructed of 1.2 cm (0.5") thick lead and completely encased with powder-coated steel. A lead glass window (2 mm LE) and a Plexiglas® panel are included. This shielding combination attenuates gamma and beta radiation, and errant bremsstrahlung, with unimpaired viewing of the work area. An optional 2 mm LE lead glass window is available to achieve 4.0 mm lead equivalency.

Optional side and bottom shields offer additional protection. Manufactured to be durable, the Beta/Gamma Tabletop Shield is framed in steel with a powder-coat finish.

  • Shields both Beta and Gamma Radiation
  • Seamless work area for easy cleaning and decontamination
  • Work surface features a built in splash tray with a spill proof lip for fast, contained clean up

Tabletop Shield

  • Lead Shielding: 1.2 cm thick (0.5")

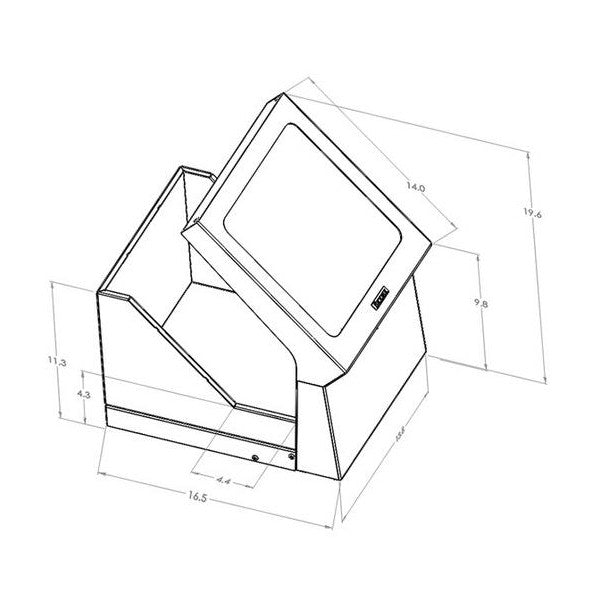

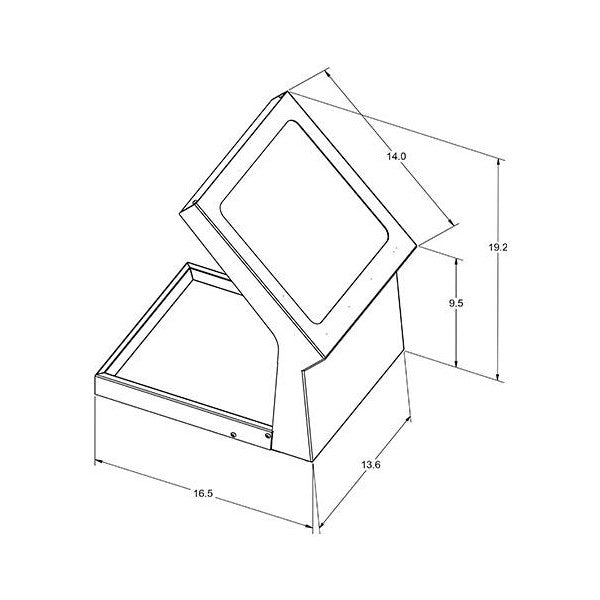

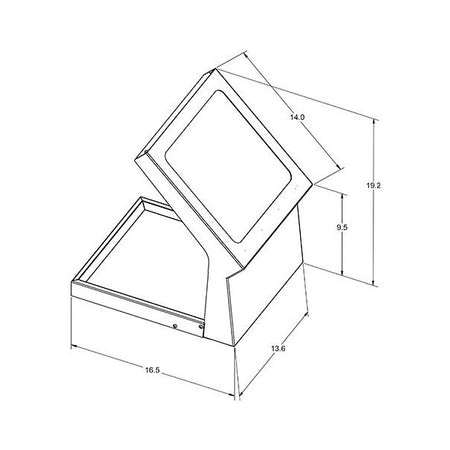

  • Dimensions: See drawings featured.
  • Viewing Panel:
    Lead Equivalency: 2 mm (an optional lead glass panel can be paired to achieve 4.0 mm lead equivalency)
    Clear Plexiglas®: For Beta Shielding
    Viewing Area: 28.2 x 28.2 cm (11.1" x 11.1")
  • Finish: Silver powder coat

Side Shield

  • Lead Shielding: 0.64 cm (0.25") thick
  • Finish: Silver powder coat
  • Dimensions: See drawings featured

Bottom Shield

  • Lead Shielding: 0.64 cm (0.25") thick
  • Dimensions: 32.5 x 32.8 cm (12.78" x 12.91")

Shipping Weight

  • 042-224 Shield: 35.8 kg (79 lb)
  • 042-228 Lead Glass: 4.5 kg (10 lb)
  • 042-227 Side Shield: 19 kg (42 lb)
  • 042-226 Bottom Shield: 14 kg (10 lb)
