T-105 System for Superficial X-Ray Therapy

Wolf Medical

T-105 System for Superficial X-Ray Therapy


Enquire



The T-105 X-ray therapy units are intended for superficial x-ray therapy in a range of 10 to 100 kV.

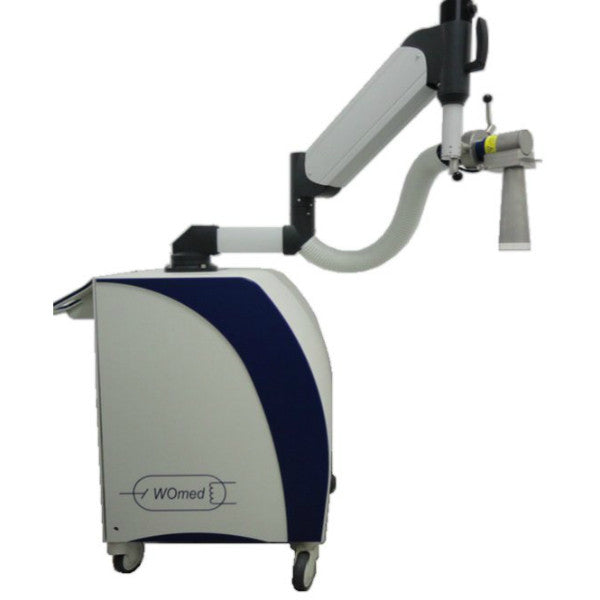

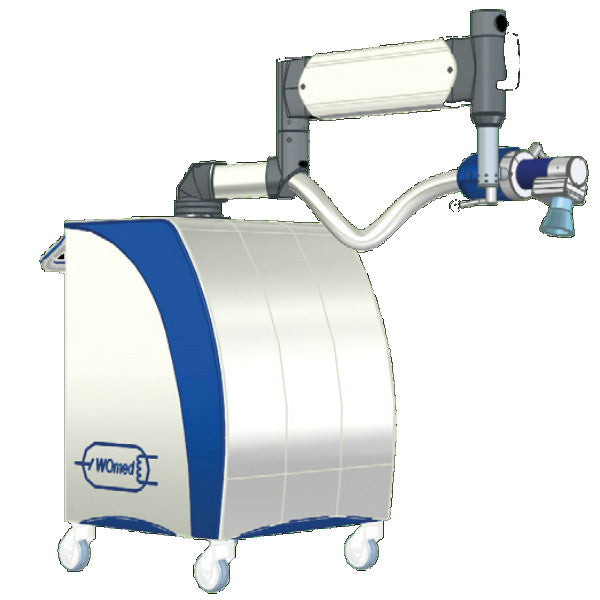

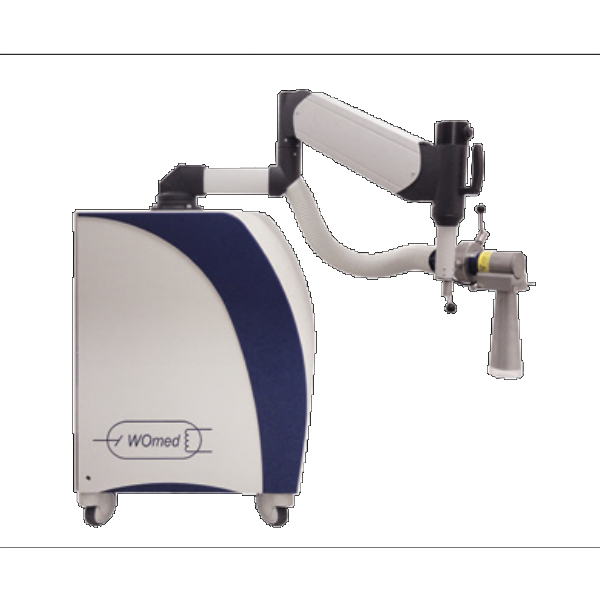

The unit T-105 consists of a mobile trolley with a mounted x-ray tube stand. A separate control desk and a touchscreen pc allow operation from a shielded place.

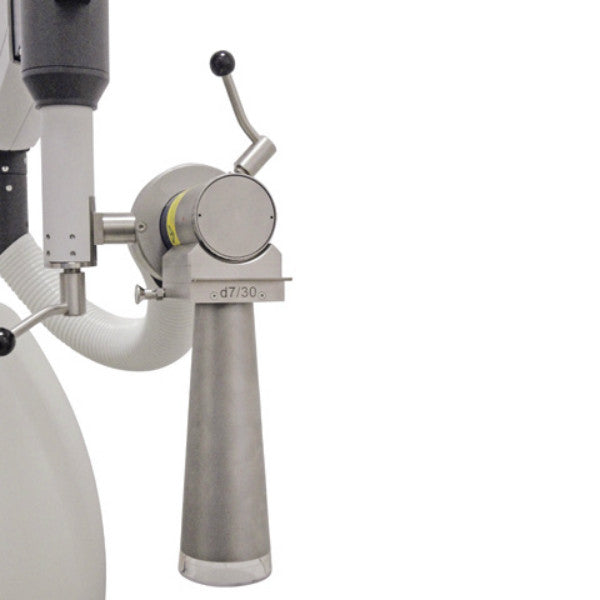

The tube head is mounted on a spring arm and able to be turned in two axis. The spring arm itself is easy to move for height setting. A clamping mechanism allows that the preselected stand position stays stabile for the treatment of the standing, sitting or lying patient. Directly at the tube head the selection of one of the 4 filters is possible. Together with the filter the high voltage and the tube current will be selected. The trolley contains a monitoring screen with indicator lights.

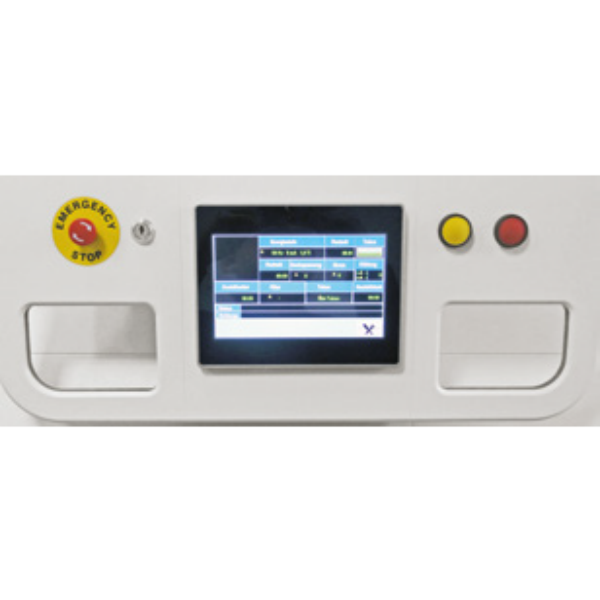

On the control desk are an emergency switch, key switch, x-ray ON switch, x-ray OFF switch. A separate Touch-Screen pc provides the communication with the user. That screen display shows all relevant device conditions and allows the input of the treatment time.

Overview

  • mobile unit
  • touchscreen pc for communication and control
  • cooler water-water
  • hand operated filter changer, 4 filters

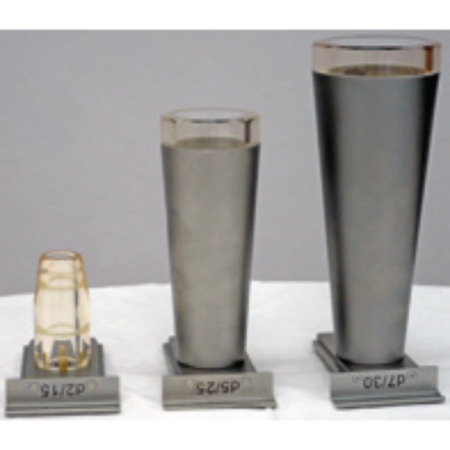

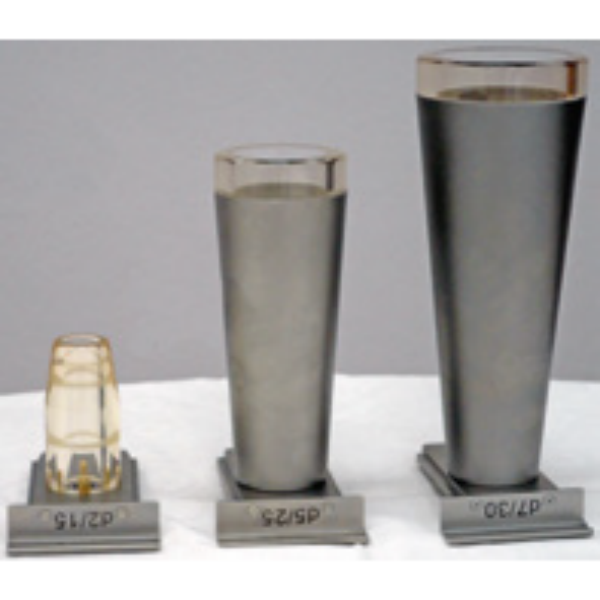

  • circular applicators, FSD 15, 25 and 30 cm
  • microprocessor controlled

Options

  • verification and record system RC2
  • information screen in the treatment room
  • service software using remote access

T-105 Specs
