Spectronic Medical provides large field-of-view phantoms and evaluation software for geometric QA in any MRI based radiotherapy workflow
The Spectronic Medical GRADE phantom and evaluation software provides the ability to accurately assess system related geometrical distortions throughout the full field-of-view of any MRI scanner. Never before has such powerful analysis been provided in a package that allows for daily usage in a routine clinical workflow.
Assessing the geometric integrity of an MRI scanner is of importance in many clinical applications. For instance, in radiotherapy the accuracy of treatment is directly dependent on the geometrical correctness of the images from which the treatment is planned. For this reason, having robust quality assurance procedures to routinely verify the geometry of acquired MR images is essential to any hospital working with such applications.

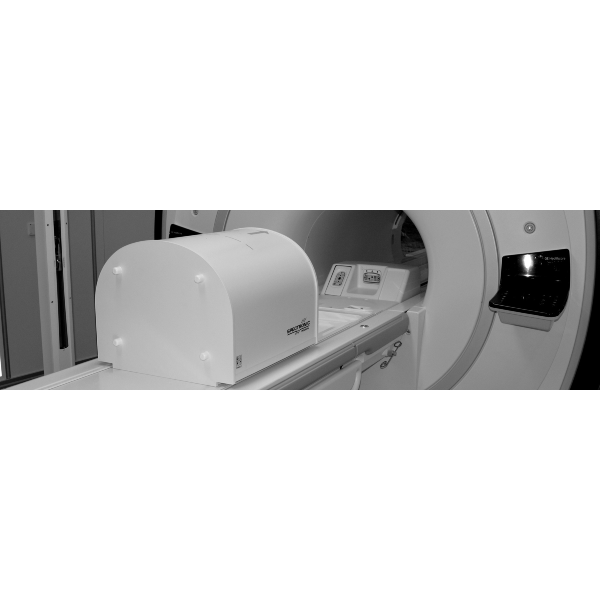

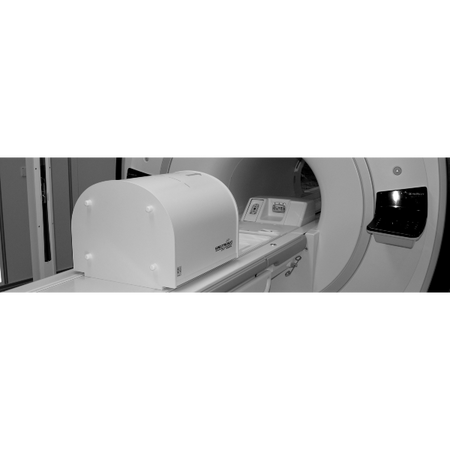

The GRADE phantom is a light-weight (<10 kg) unit comprising around 1200 spherical markers specifically designed for MRI geometry distortion assessment. GRADE phantoms are customized for each MRI scanner model, to assure that markers are distributed across the full effective field-of-view. The purpose of the GRADE phantom is to allow geometry distortion assessment of the same types of images as used in clinical applications. Thus, GRADE phantoms can be used with virtually any type of MR sequence.
Optimized for each MRI scanner to provide full field- of-view coverage.
Built for daily quality assurance testing with ease of use in mind. Weighs less than 10 kg / 22 lb.
Fully automated software, returning a comprehensive evaluation report with diagrams and tables.
GRADE cloud software
The GRADE evaluation software runs in a secure online cloud solution, which is accessed either through a web interface or through a link client software installed at the hospital. In the latter case MR images are directly sent from the MRI scanner to the link client software through standard DICOM communication, to enable seamless integration into any clinical workflow. MR images are processed by the GRADE evaluation software, which generates a PDF report that is emailed back to the user.
GRADE Evaluation report
The evaluation report includes diagrams and tables to provide an analysis of the geometrical accuracy of the MRI scanner. The comprehensive report is targeted toward daily QA evaluation. For advanced users, there is an optional ability to also receive complete distortion vector fields for further analysis.
GRADE technology highlights
▶ Sub-millimeter measurement accuracy ▶ Full coverage of effective field-of-view ▶ Customized for each scanner model ▶ Less than 10 kg / 22 lb using light-weight materials ▶ Susceptibility correcting algorithm ▶ Around 1200 spherical markers ▶ Seamless integration with clinical MRI scanners using link client DICOM node ▶ Integrates well with Spectronic Medical’s MriPlanner technology for MRI only RT planning
