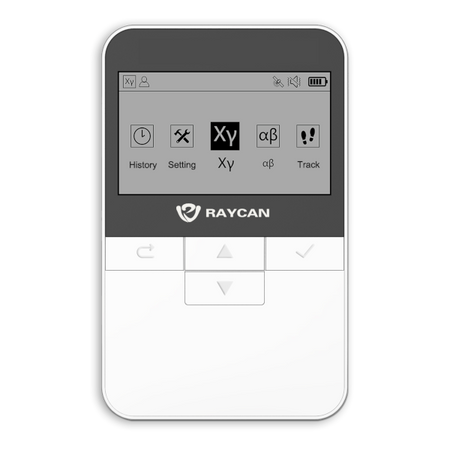

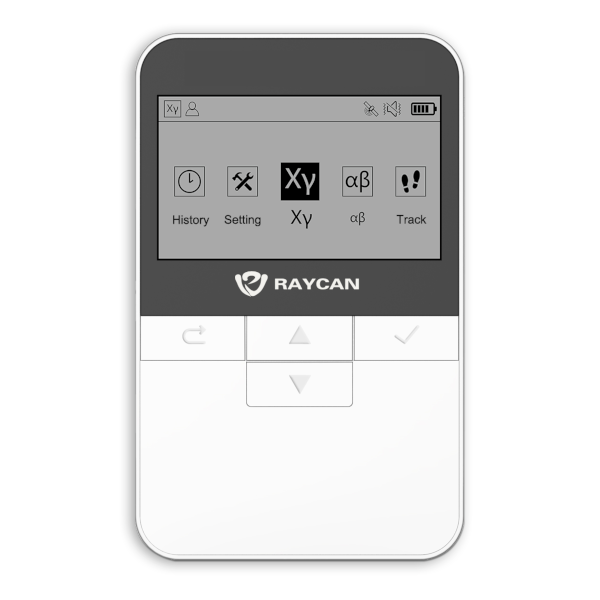

RadPavise | Personal Radiation Detector by X-Z LAB is an all-digital personal radiation detector covering a wide range of gamma and X-ray radiation.

RadPavise | Personal Radiation Detector is a next-generation all-digital personal radiation detector that combines four functions in one:

  • Dose Equivalent Rate Meter
  • Accumulated Dose Meter
  • Radiation Survey Meter
  • Radiation Source Locator

This pocket-sized, direct-reading PRD accurately detects and measures radiation exposure for workers and responders in potentially hazardous environments.

RadPavise | Personal Radiation Detector uses a YSO scintillation detector combined with a state-of-the-art silicon photomultiplier (YSO+SiPM) and multi-voltage threshold (MVT) algorithm to detect a wide range of radiation doses.

Proportional, real-time detection and measurement provide meaningful readouts that focus on real-world applications. The fast response and wide dose rate range maximize the safety of your team. Intuitive navigation allows users to adjust settings in the field.

The unique, high-contrast OLED display provides a clear indication of the wearer’s equivalent dose rate, accumulated dose, and count rate. The search interface can also be used as a survey meter to locate the source of radiation.

RadPavise | Personal Radiation Detector is designed to meet the needs of emergency responders and radiation protection personnel across the United States.


Technical Specifications


YSO Scintillator + SiPM

Type of Radiation Detected

Alpha, Beta, Gamma, X-Ray

Energy Range

20 keV–10 MeV

Dose Rate Range

1 μrem/h–100 rem/h (0.01 μSv/h–10 Sv/h)

Integrated Dose Range

1 μrem–10,000 rem (0.01 μSv–100 Sv)


980 cps/mrem/h (98 cps/μSv/h) (∝ Cs-137)

Energy Response

≤ ±20% (∝ Cs-137)

Dose Rate Linearity

≤ 10% up to 100 rem/h (1 Sv/h)


±10% (∝ Cs-137)

Alarm Threshold

User-set values for dose rate: 2 μrem/h–100 rem/h (0.02 μSv/h–1 Sv/h)

Alert Options

Audible (80 dB at 12 in ∕ 30 cm), Vibrating, Visual (LED and Display)

Alarm Response Time

< 2 s

Overload Display

Activation when > 100 rem/h (1 Sv/h) Overload indication up to 10 rem/h (10 Sv/h)


4-Button Interface, Front-Facing Screen

Power Supply


Battery Life

Typically 500 hours in background field


Backlit Memory LCD


165 g (without batteries)


120mm x 75 mm x 32 mm

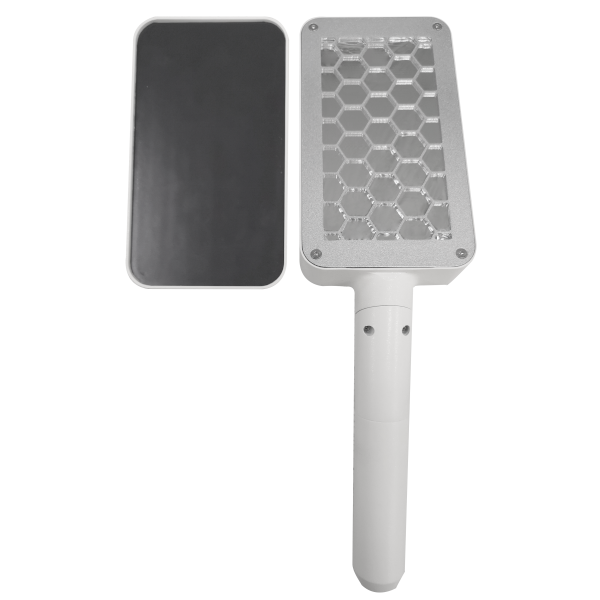

External probe for Alpha and Beta

Operating Temperature

32–122 °F (0–50 °C)

Storage/Transport Temperature

-4–158 °F (-20–70 °C)

Relative Humidity

Up to 90% RH (Non-Condensing)

IP Rating



More Details


1 | Features

Digital data acquisition
  • All-digital solid-state detection
High-performance detection design
  • High-performance YSO crystal
  • Miniaturized SiPM
  • High-speed chip enables fast response and the smallest dead time in industry
  • Patented MVT digital signal processing technology provides excellent performance and stability
  • Background radiation interference virtually eliminated
Rapid response
  • Full-range reading and alarm response in less than 2 seconds
  • High sensitivity allows for earlier detection
  • Audible output quickly alerts responders of rapidly changing radiation levels
  • Real-time, active self-reading
Quality control system
  • Auto-calibration
  • Virtual elimination of false alarms
  • Ability to discriminate between background and man-made source
  • Programmable chips enable firmware updates and system upgrades
  • Ultra-low power consumption
  • High system stability and reliability
  • Accurate and reliable data
  • Precise quantitative analysis


2 | Benefits

  • As an active self-reading device, both dose rate and accumulated dose are measured in real time, enabling users to always be aware of current exposure
  • Large OLED display offers user readability in dark or bright environments
  • Three types of alarms alert users in a multitude of ways: vibrating, audible, and visual
  • Alarm is either preset or user programmable through entire measurement range
  • Intuitive menu-driven navigation allows user to adjust settings in the field
  • Easy one-handed operation with just two buttons, allowing total control with a thumb
  • Proportional, real-time detection and measurement provide meaningful readouts that focus on the awareness and safety of the user during critical times
  • Patented MVT sampling method resulting in no signal loss and high signal-to-noise ratio
  • Low-power CMOS digital electronics combined with digital silicon photomultiplier chip (SiPM)
  • Dose and dose rate alarms provide additional awareness of high radiation levels
