PURE. Mammo

Pure Imaging Phantoms

PURE. Mammo


Enquire

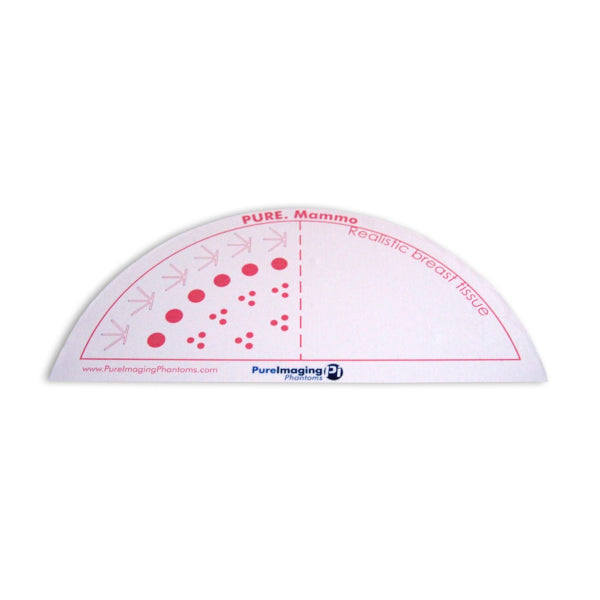

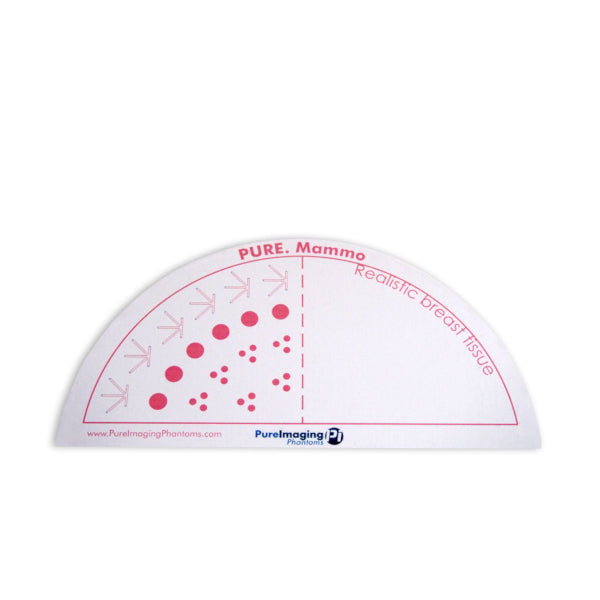

This is a simple and efficient-to-use routine medical imaging test phantom which is used daily to evaluate the imaging performance of mammography systems. A realistic image is formed which shows filaments, micro-particles and low-contrast details, representing pathological features in the breast. If any of these ever avert from the norm then this may indicate deterioration of image quality in your fluoroscopic imaging system.

Specification:

  • Dimensions: 240mm diameter semi-circle x 10mm thick
  • Standard PMMA test block: 6 pieces 10mm thick PMMA 240mm diameter semi-circle 2 pieces
  • Filaments (6 groups of filaments)
  • Micro-calcifications (6 groups of micro-calcifications in ranges of 354-224, 283-180, 226-150, 177-106, 141-90, 106-93)
  • Threshold Contrast Details (6 groups of 3, low contrast details groups)
  • • Realistic Mimic Breast Tissue (6 groups of micro-calcifications (as in the above) with a mimic breast tissue feature)

Comes with:

  • Detailed user manual
  • Robust carrying case for easy transport

Complies with:

  • IEC 61223-3-2

Share this Product
