PET Unit Dose Table

Biodex

PET Unit Dose Table


Enquire

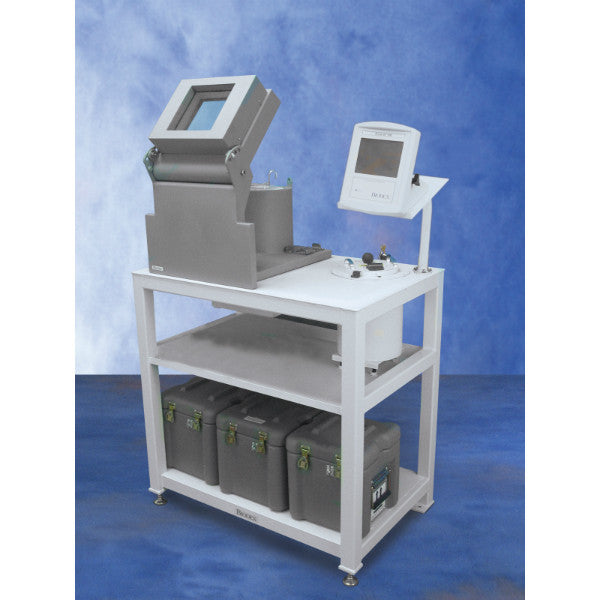

Designed for PET hot labs with limited space, the PET Unit Dose Table includes added features to help maximize the work area and the protection. The table includes the 042-433 Biodex Compact L-Block with Built-in Dose Calibrator Shield and the 039-412 Sharps Container Shield.

The Compact L-Block with Dose Calibrator Shield features a large 8" x 8" x 4" lead glass window with adjustable window angle, 1.5" thickness lead shielding in front, and 1" thick lead in the base and in the chamber shield. It is designed to accommodate a chamber that is through mounted in the countertop. The chamber shield accommodates all Atomlab Dose Calibrators and many others.

The Sharps Container Shield is constructed of steel and lined with 1" thick (2.5 cm) lead. It features a lockable sliding cover for container removal and a hinged top door for syringe disposal.

Shipped completely assembled, the Unit Dose Table eliminates the need for on-site lifting equipment. A simple pallet jack is all that is required to move the unit. Once the Dose Calibrator Chamber is placed in the shield, the chamber support shelf provides 1" thick lead shielding. The Dose Calibrator display unit mounts on a stand above the countertop to further maximize work space.

A spacious bottom shelf can hold several PET shipping containers. The middle shelf provides convenient storage for syringe shields and other small items.

In applications where additional shielding is required, the optional 042-434 Lead Brick Cave is available.

More Features, More Shielding

  • Designed for PET hot labs with limited space
  • Lead shielding under calibration chamber
  • Shipped Completely Assembled:
    - Compact L-Block Shield with Built-in Dose Calibrator Shield
    - PET Sharps Container Shield
  • Shelf space for:
    - PET shipping containers
    - Small items

042-448 PET Unit Dose Table:

  • Dimensions: 36.75" w x 24" depth x 36" h (93.5 x 61 x 91.5 cm)
    Front legs incorporate adjustable levelers.
  • Lead Shielding: 1" thick (enclosed in chamber mounting shelf)
  • Finish: Powder coat
  • Weight Capacity: 1550 lb (703 kg)
  • Weight: 294 lb (133.3 kg)

042-433 Compact L-Block with Dose Calibrator Shield:

  • Dimensions: 18" w x 21.5" depth x 26" h (45.7 x 54.6 x 66 cm)
  • Lead Shielding:
    - Front: 1.5" thick (3.8 cm)
    - Base: 1" thick (2.5 cm)
    - Calibrator Shield: 1" thick (2.5 cm)
  • Calibrator Shield Inside Dimensions: 6.85" I. D. x 10.25" h (17.4 x 26 cm)
  • Lead Glass Window:
  • Dimensions: 8" w x 8" h x 4" thick (20.3 x 20.3 x 10.2 cm)
  • Density: 5.2 g/cm3
  • Finish: Powder coat
  • Weight: 590 lb (259 kg)

039-412 High-Energy PET Sharps Container Shield:

  • Dimensions: 12" h x 8.75" dia (30.5 x 22.2 cm)
  • Lead Shielding:
    - Sides and Bottom: 1" thick (2.5 cm)
    - Rotating Cover: .875" thick (2.2 cm)
    - Hinged Door: .625" thick (1.5 cm)
  • Security: Key-locked
  • Weight: 175 lb (79.4 kg)
  • Shipping Weight: 222 lb (100.6 kg)
