PET Shipping System for Double-Ended PET Pig

Biodex

PET Shipping System for Double-Ended PET Pig


Enquire



The Double-Ended PET Pig is an all-in-one solution for the safe transport and administration of 511 keV radionuclides, such as FDG F-18. The pig is constructed in three sections of .6" (1.5 cm) lead enclosed in durable Lexan. Depending on the stage of the injection process, only one section of the pig is removed. The injection itself is accomplished without removing the syringe from the pig. Simply open the administration port and push the tungsten plunger against the syringe plunger. During injection the pig is positioned on a stand. The Double-Ended Pig accommodates a 5 cc syringe and fits into its own compact shipping container. The system employs a unique design that decreases the weight and size of the container.

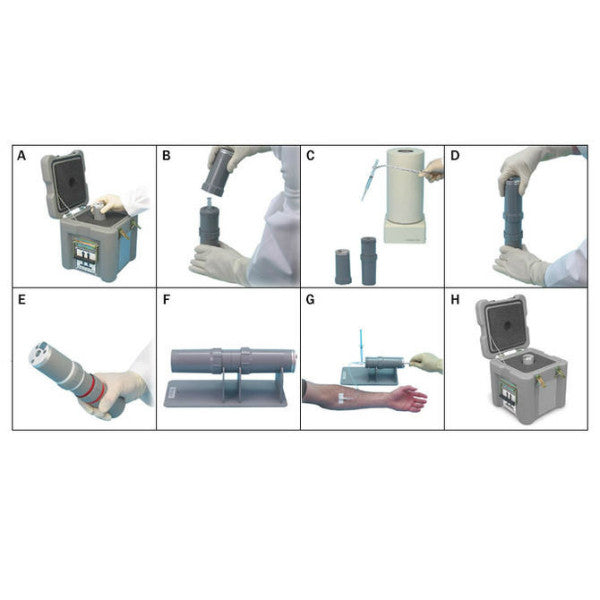

Here's how it works:

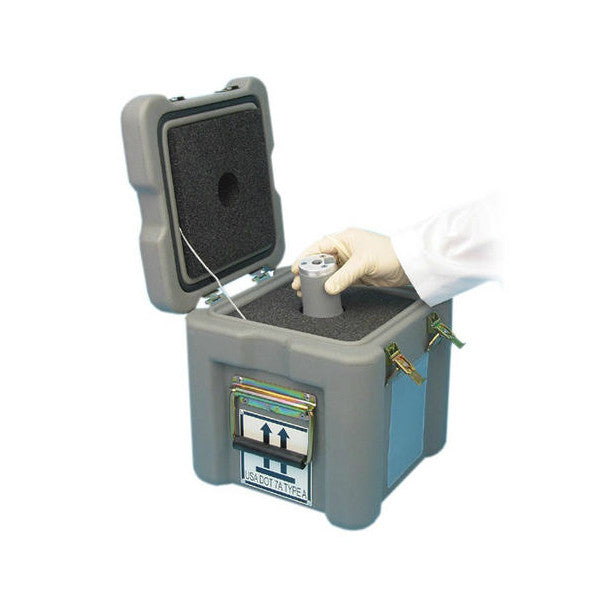

  1. Remove the Double-Ended Pig from the compact shipping container. (See dia. A.)
  2. Place behind an L-Block Shield.
  3. Unscrew the top. (See dia. B.)
  4. Remove the syringe and place into a dose calibrator. (See dia. C.)
  5. Return the syringe to the pig and put the top back on. (See dia. D.)

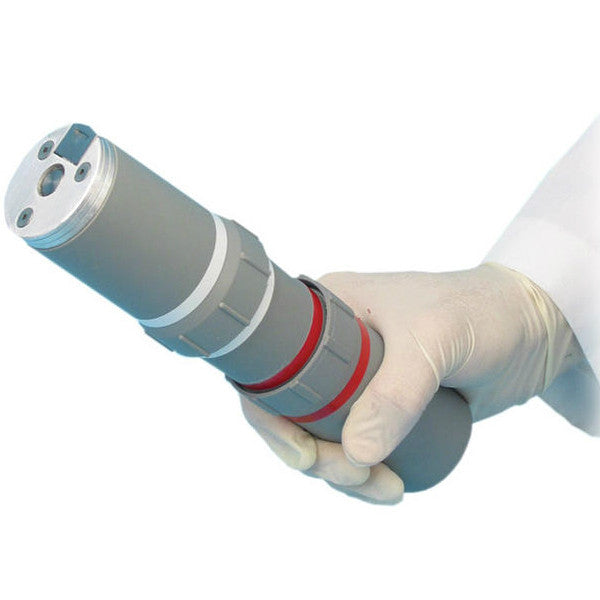

  6. Transport the pig to the patient injection area. (See dia. E.)
  7. Place the pig into the Pig Cradle so the top section of the pig is over the long section of the cradle.
    (See dia. F.)

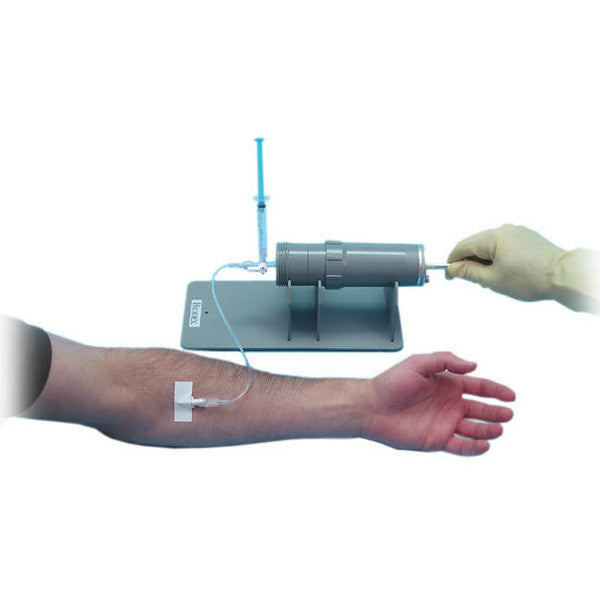

  8. Remove the bottom of the pig and connect to your preferred injection device, butterfly, etc. (See dia. G.)
  9. Open the plunger lock located on the top section by pulling the slide toward the edge of the
    pig. With a pen-like device, push the tungsten plunger to administer the dose. (See dia. G.)
  10. Recap the syringe.
  11. Put the bottom back on the pig.
  12. Return the pig to the compact shipping container. (See dia. H.)

001-793 Double-Ended PET Pig

  • Dimensions:
    - 9.5" h x 2.3" dia at maximum point (24 x 5.8 cm)
  • Shielding:
    - Sides: .6" thick (1.5 cm) lead
    - Bottom: 1.44" thick (3.7 cm) lead
    - Top: .875" thick (2.2 cm) tungsten
  • Weight: 9 lb (4 kg)

001-794 PET Shipping System, Double-Ended Pig

  • Dimensions:
    - Container: 11.75" l x 11.75" w x 12.5" h (29.8 x 29.8 x 31.8 cm)
    - Cubic Feet: ~1 cu ft (0.3 cu meters)
  • Weight: 36 lb (16.3 kg)

Regulations:

  • Meets DOT Yellow II Type A packaging requirements when shipping up to 475 mCi (17.58 GBq) of FDG F-18.
  • Meets IATA Dangerous Goods Regulations, 56th Edition Sections 5.0.4.3, 10.5, and 10.6.1 thru 10.6.3.5.
