Interlocking Lead Brick Caves

Biodex

Interlocking Lead Brick Caves


Enquire



Design your own enclosure or select from these most popular 3-walled caves.

The optional Lead Brick Caves fit neatly in the sides of the vertical section to provide lateral shielding around the perimeter of the L-Block's base. For hot labs in mobile vans, the optional Brick Cave Cover will prevent the cave from shifting when the vehicle is in motion.

  • Optional Lead Brick Cave for complete lateral shielding
  • V-Shaped edges eliminate radiation streaming

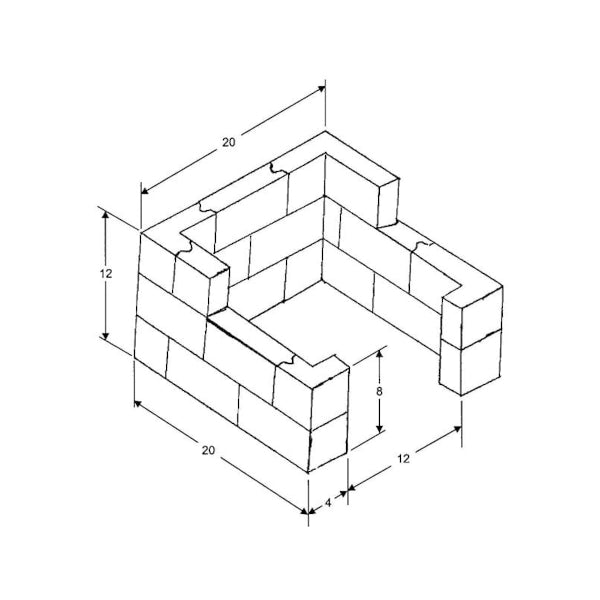

Item # 5530-2074

New configuration will completely enclose your 511 L block for added radiation protection.

Item Measurements
  • Lead Brick Enclosure: 2″ (5 cm) lead
  • Dimensions: 12″ H x 20″ W x 20″ D (30.5 x 50.8 x 50.8 cm) (outer)
  • Weight: 475 lbs. (215.4 kg)

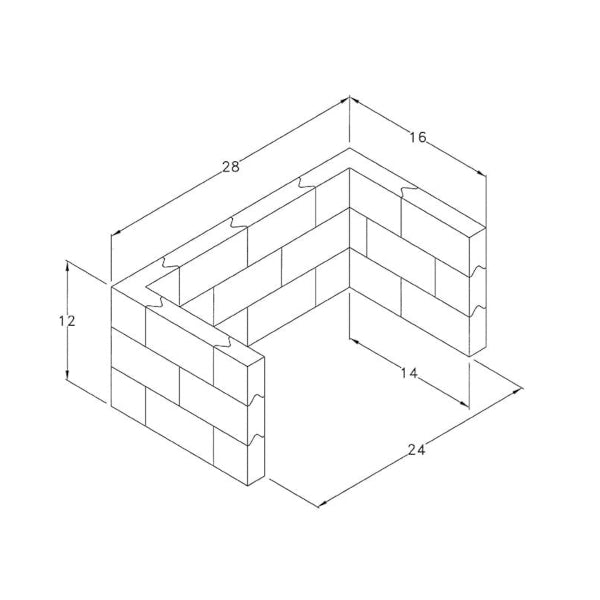

Item # 5530-1030

Larger 3 sided cave provides flexible placement of L block, easy side access, and more room for source storage

Item Measurements
  • Lead Brick Enclosure: 2″ (5 cm) lead
  • Dimensions: 12″ H x 28″ W x 16″ D (30.5 x 71.1 x 40.6 cm) (outer)
  • Weight: 550 lbs
042-434 Interlocking Lead Brick Cave

Fits 042-433 L-Block Shield

  • Dimensions:
  • I.D.: 14″ w x 20.5″ depth x 16″ h (35 x 52.1 x 40.6 cm)
  • Lead Shielding: 2″ thick (5 cm)
  • Finish: Paint
  • Weight: 597 lb (271 kg)
