Integrated Shim™ for Portrait™ S-frame

QFix

Integrated Shim™ for Portrait™ S-frame


Enquire



Description

Integrated Shim™​ System

Innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Each Integrated Shim can be adjusted in discrete 0.5 mm increments, with a total range of 4 mm.

Key Features:

  • Independent shimming at each pin point
  • No need to remove mask to tighten or loosen
  • Increased workflow efficiencies
  • Increased patient comfort
  • Better workflow and instant setup feedback

To adjust Shim Height:

  • Pull up to unlock the pin
  • Rotate the pin to the desired height adjustment
  • Depress the pin to lock

Options:

Fibreplast®, Portrait™ S-frame Head Only with Integrated Shim™, 3.2 mm

Fibreplast®, Portrait™ S-frame Head Only with Integrated Shim™, 3.2 mm
RT-A889KYSD

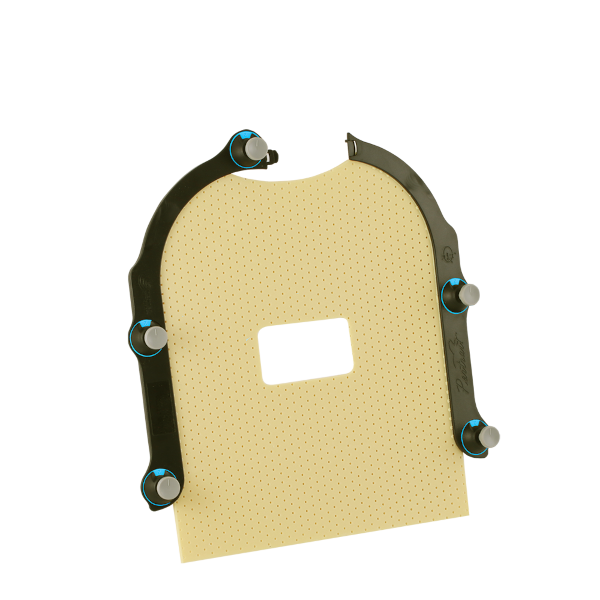

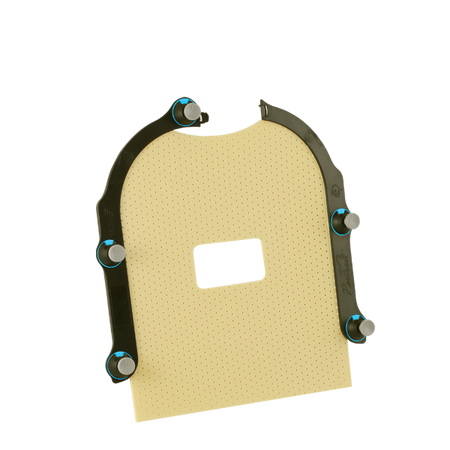

Fibreplast®, Portrait™ S-frame Head Only with Integrated Shim™, 3.2 mm

Fibreplast®, Portrait™ S-frame Head Only with Integrated Shim™, 3.2 mm
RT-A876KSDGLF

Fibreplast®, Portrait™ S-frame Head & Shoulder with Integrated Shim™, 2.4 mm

Fibreplast®, Portrait™ S-frame Head & Shoulder with Integrated Shim™, 2.4 mm
RT-A782KSD

Fibreplast®, Portrait™ S-frame Variable Perf Head & Shoulder with Integrated Shim™, 3.2 mm

Fibreplast®, Portrait™ S-frame Variable Perf Head & Shoulder with Integrated Shim™, 3.2 mm
RT-A892KYSD

Fibreplast®, Portrait™ S-frame Variable Perf Head & Shoulder with Integrated Shim™, 3.2 mm

Fibreplast®, Portrait™ S-frame Variable Perf Head & Shoulder with Integrated Shim™, 3.2 mm
RT-A892KYSDF

Aquaplast RT™, Portrait™ S-frame Head & Shoulder with Integrated Shim™, 3.2 mm

Aquaplast RT™, Portrait™ S-frame Head & Shoulder with Integrated Shim™, 3.2 mm
RT-A892YSD
