As indicated in its name, the HIT Single Diode includes only one diode per optical head, and it can be either red or green.

The HITSD consists of:

- One sagittal line
- Two cross lasers

Possibility to add more lines (for example put a sagittal cross line)

>> Lasers certified for an MRI environment till 3T.

 What advantages does the HIT Single Diode offer compared to other laser systems on the market ?

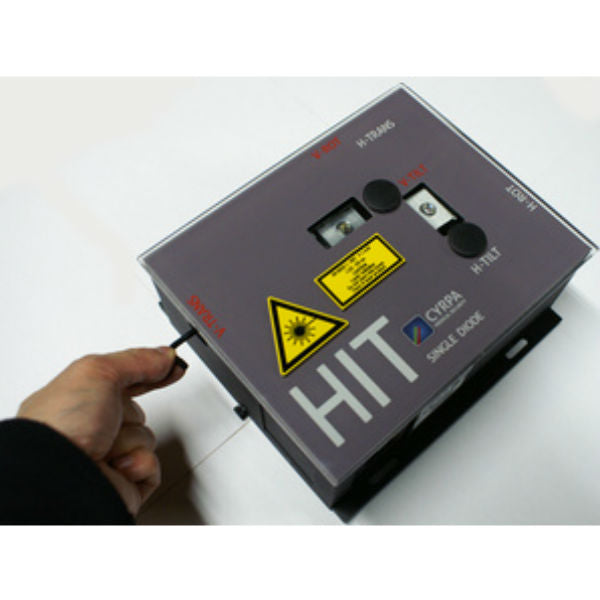

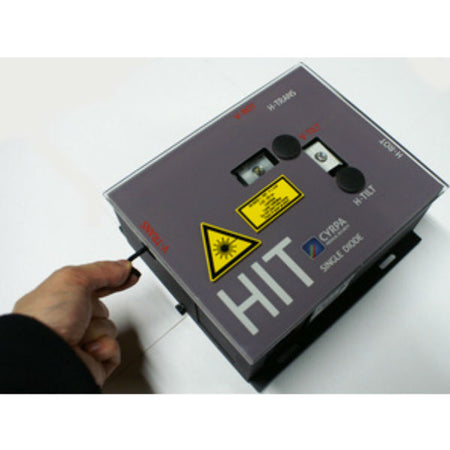

- Adjustment of laser lines on all the three planes of movement is possible without opening the laser cover. This allows a better stability of the adjustment. Indeed, if the user needs to remove the cover to adjust the lasers, putting the cover back inflicts a constraint and unsettles them. With the CYRPA HITSD, only a simple wrench is necessary to adjust the laser, from the outside, without removing the laser cover.

- The tilt sensitivity is a key point when adjusting a laser manually. The less sensitive, the better. CYRPA HITSD has a very low tilt sensitivity (as compared to our competitors) which allows a more simple and more stable adjustment.

Manual fixed lasers are usefull in every type of MRI room with compatible supports supplied by the room.

Specifications

• Red Laser

  • Type : Diode
  • Wavelength : 635nm
  • Maximum output power <1mW
  • Laser Class : Class II
  • Fineness of the line : < 1mm
  • Line Length : > 3m

• Green Laser

  • Type : Diode
  • Wavelength : 532nm
  • Maximum output power <1mW
  • Laser Class : Class II
  • Fineness of the line : < 1mm
  • Line Length : > 3m

• Manual Box

  • Overall Dimensions (Height x Width x Depth) : 220 x205 x 110 mm
  • Weight: 2 kgs
  • Power Supply: Internal 110/230 VAC.
  • Consumption of less than 500mA
  • Temperature: 15-30 °C
  • Type of control: Manual
  • Adjustable without removing the cover
