Full Adult Body Phantom

Pure Imaging Phantoms

Full Adult Body Phantom


Enquire

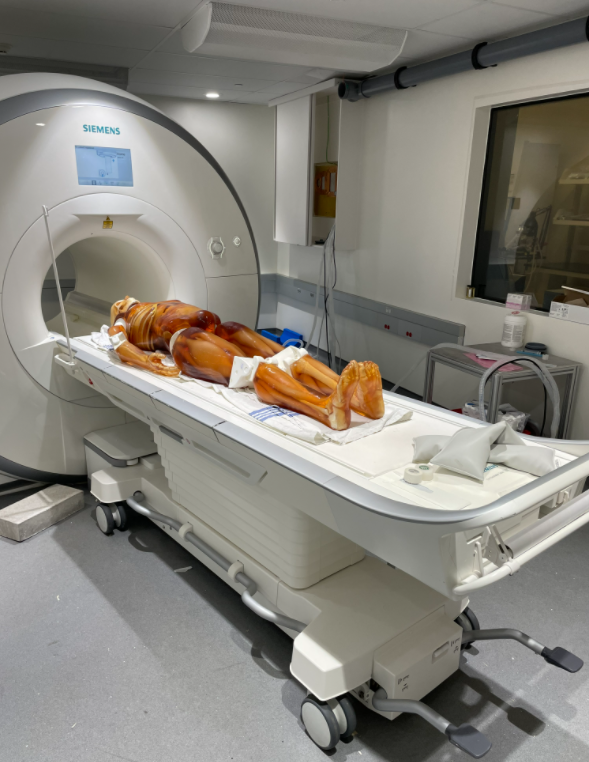

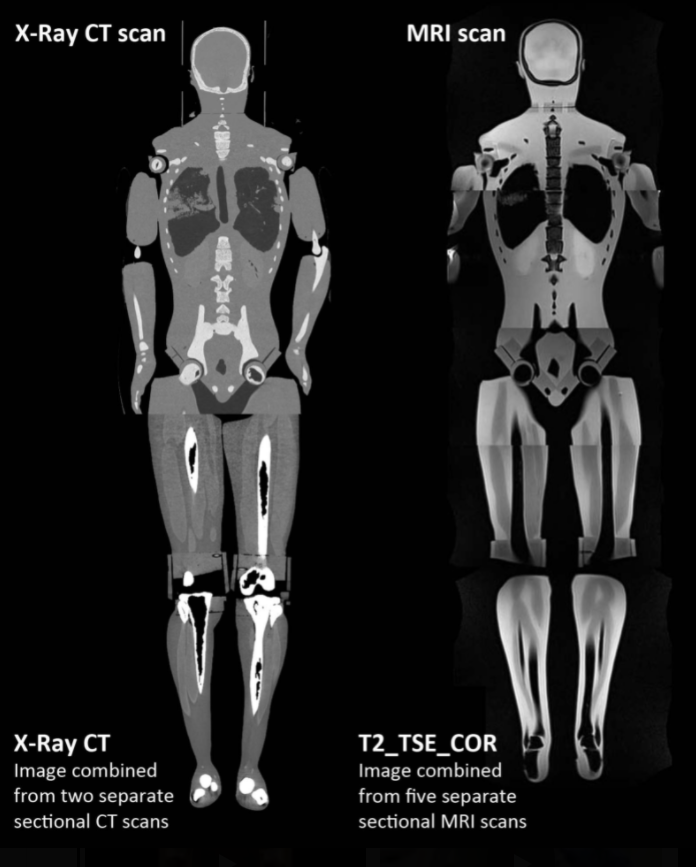

The Adult Full body Phantom is a lifelike anatomically correct phantom. The phantom is compatible with X-ray, Ultrasound, MRI and CT imaging methods.

The Phantom can be used for training & demonstration purposes for various patient positioning techniques in radiology. Other uses include hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions.

Features:

  • Anatomically correct full-body divided into 10 parts as explained below.
  • Realistic body tissue-mimicking material.
  • Useful to train/perform several patient positioning techniques under radiology.
  • Shoulders can be rotated 360 degrees round ways and 180 degrees sideways.
  • Movable Hip joints, knees, and elbows at respective degrees.
  • Detachable Head, Torso & limbs.
  • The bones have a realistic three-layered structure with inner porosity which can be adjusted according to the requirement of the particular project.
  • Customisable with different pathologies (lesion, tumor, infection, abnormality) upon request.
  • The phantom can be ordered in a transparent or skin-colored version.

Includes:

  • Head with Skull & Brain
  • Realistic Air cavities
  • Sinus
  • Torso with complete Spine & Ribcage
  • Pelvis
  • Trachea
  • Thigh
  • Knee Joints
  • Leg & Foot
  • Heart
  • Lungs
  • Liver & Kidney
  • Stomach & Bladder
  • Large intestine & Small intestine
  • Shoulder & Arm
  • Elbow Joints
  • Hand
  • Skin-mimicking material

Materials:

Soft tissue and organs: Composition of urethane base soft resin
Synthetic bones: Patented ceramic-reinforced epoxy based composite material.

Dimensions and Weight:

The design is based on an adult male body that weighs about 70 KGS and measures 175 CMS in height.

Comes with:

  • Detailed user manual
  • Protective carry case
