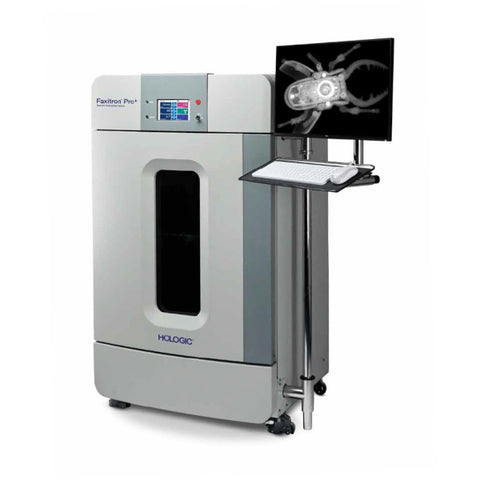

Faxitron® Pro+ X-ray Cabinet


Faxitron® Pro+ X-ray Cabinet


Faxitron Pro+ x-ray cabinet is a larger, more versatile, fully shielded digital x-ray cabinet. Featuring an extra-large field of view so you can image large samples without sacrificing resolution.


  • Large cabinet and detector size lets you image samples currently too big for existing cabinet x-ray systems thanks to an expanded cabinet and larger 43cm x 43cm imaging area.
  • Best-in-class resolution with native detector resolution of 100 µm and effective resolution up to 10 µm. Multiple levels of geometric magnification (up to 10X) allow imaging at the highest resolution.
  • More versatile thanks to proprietary Automatic Exposure Control (AEC) which selects optimal x-ray exposure settings to ensure one of the highest image quality for a broad range of biological and light NDT samples. Manual exposure mode also available for multi-layer samples and those containing a variety of components.
  • Ergonomic design means this fully integrated, floor standing system with heavy duty casters fits easily into any lab and plugs into any standard A/C outlet.
  • Easy to use with no extensive training or specialised x-ray knowledge required to operate. Intuitive software designed to meet the imaging needs of research and industrial users.
  • Independently certified by a Nationally Recognised Testing Laboratory (Intertek) to the highest international standards.
  • Remote diagnostics and support available from product specialists ready to help.
Imaging area 43cm x 43cm
Pixel pitch 100μm (18.7 million pixels)
Scintillator Direct deposited Csi
Magnification Up to 10X
Spatial Resolution 10μm at magnification
Energy range 20-100kV
Tube current 1.0mA max (limited to 12W)
Focal spot size <15μm
Tube filtration 0.25mm Be, tungsten source
Power requirements 100-240VAC, 50/60Hz, 150VA
External dimensions 86cm W x 79cm D x 158cm H
Chamber dimensions 64cm W x 64cm D x 92cm H
Weight 635kg
