Econo Echocardiography Table

Biodex

Econo Echocardiography Table


Enquire



The Econo Echocardiography table is based on the same platform as the Echo Pro.  It has the same ergonomic features, keeping the safety of the sonographer in mind.  To make it a more cost-effective alternative, it is offered without Trendelenburg positioning or the central floor-locking system.

The barrier between sonographer and patient is eliminated with the Econo Echocardiography Table, featuring a new ergonomic design that helps prevent musculoskeletal injury.

The new design includes a cardiac drop-down cushion that provides the largest scanning access of any table, with the ability to release and return from either side of the table.  Open access is provided to the patient’s left thorax area for an unobstructed apical approach.

The Econo Echocardiography Table has many optional items to further improve sonographer comfort and safety.  Choose what best suit your department’s specific needs.  Redesigned side rails for closer patient access, a vascular scanning arm board, adjustable from 0 to 130-degrees and a headrest extension for easier thyroid and carotid access are all available.

Suitable Procedures:

  • Abdomen
  • Aorta
  • Thyroid
  • Breast
  • Carotid
  • Upper Extremity Arterial*
  • Renal Transplant
  • SMA
  • Stress Echo
  • Renal
  • Pelvis
  • Testicular
  • Musculoskeletal
  • Upper Extremity Venous*
  • Renal Artery
  • Abdominal Doppler
  • Echocardiography
  • Transesophogeal Echo

*Requires optional vascular arm board.

  • Ergonomic design helps prevent musculoskeletal injuries – comfortable shoulder, arm and hand positions when scanning
  • Extra wide top with 500-lb patient capacity, suitable for bariatric patients

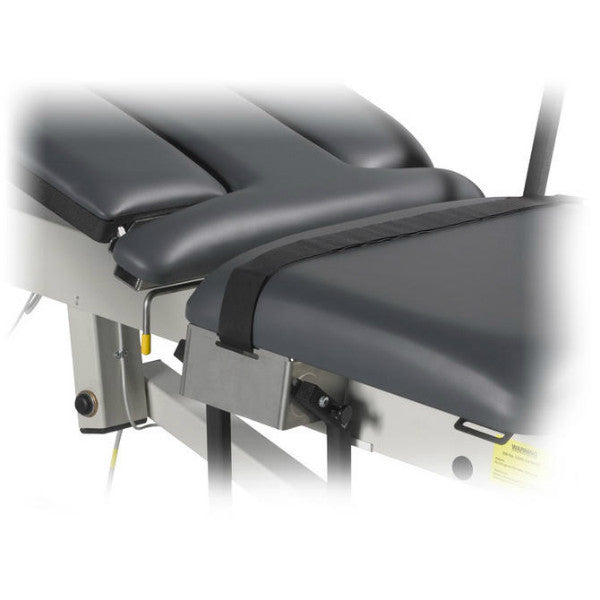

  • Cardiac drop-down cushion, allows release and return from either side of table
  • Industry’s largest cardiac scanning cutout – 9.5" w x 15.75" l
  • Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties

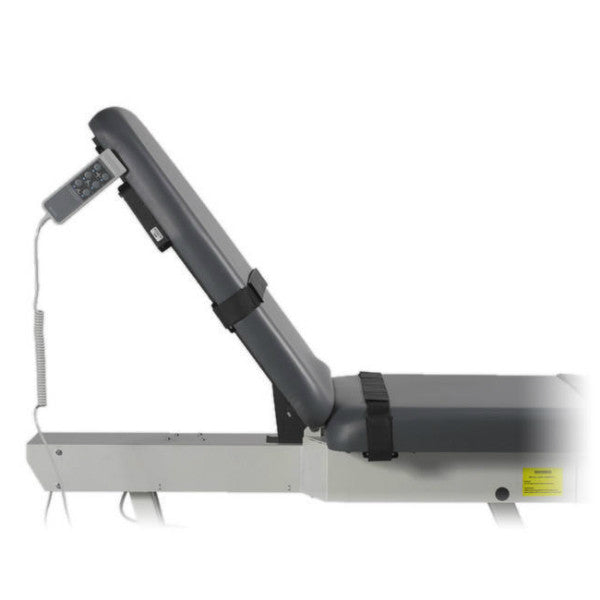

  • Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
  • Motorized height and Fowler positioning
  • Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Durable hand controller
  • Allows seated or standing work positions

Optional

  • Redesigned side rails flush to table for unencumbered patient access
  • Articulating Scanning Arm Board, adjustable from 0 to 130 degrees
  • IV Pole easily attaches for quick convenience
  • Paper Dispenser accommodates a roll of hygienic table paper. Includes a cutter strap.
  • Headrest extension drops down 15 degrees to allow for carotid and thyroid studies
  • Dimensions:
    - Overall: 73" l x 30" w (185.4 x 76.2 cm); 35" w (88.9 cm) with optional side rails
    - Cardiac Scanning Cutout:  9.5 w x 15.75 l (24.1 x 40 cm)

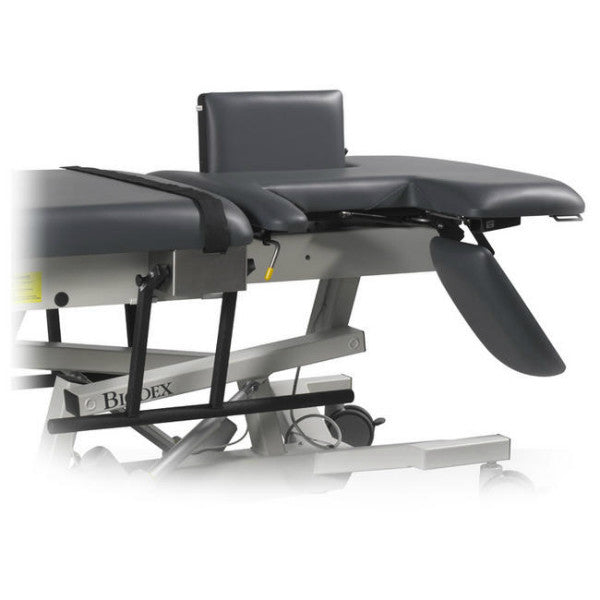

      Drop-down cushion releases from either side of the table.
    - Sonographer Cutout: 8" w x 14.75" l (20.3 x 37.4 cm) Adjustable sonographer
      cushion drops down or folds up for maximum access to the patient.
  • Motions:
    - Height Adjustable: 23" to 39" (58.4 to 99 cm)
    - Fowler Back: 0° to 80° infinitely adjustable
  • Controls:
    - Hand Control: Activates height and Fowler back
  • Wheels: 5" (12.7 cm) Individual locking swivel casters
  • Tabletop: Two primary sections: torso section: features sonographer and patient cutouts with Fowler positioning, and lower body section remains fixed
  • Mattress: Torso section 2" (5 cm) thick, lower body section 3" (8 cm) thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Upholstery Color: Graphite
  • Patient Restraints: Two body straps
  • Finish: Powder coat
  • Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
  • Weight: 335 lb (152 kg)
  • Power: 115 VAC or 230 VAC
  • Warranty: Two-year
  • Certifications: ETL and cETL Listed to UL60601-1 and CAN/CSA C22.2
    No. 601.1-M90 and EN60601-1 standards.
