RadTarge-Mini Electronic Personal Dosimeter

X-Z LAB

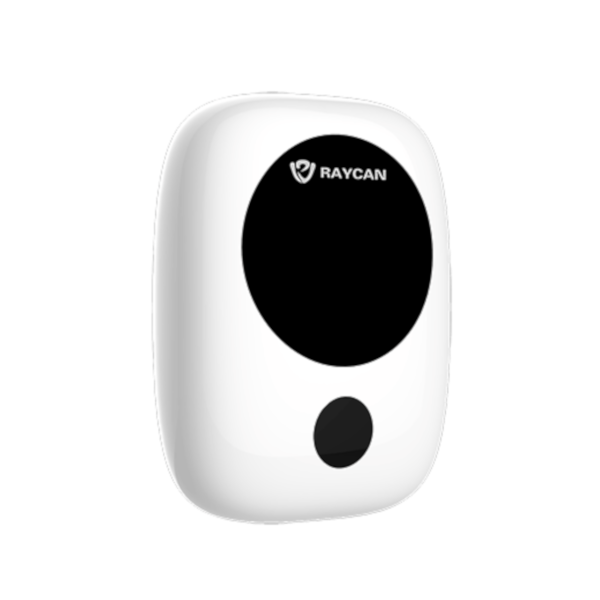

RadTarge-Mini Electronic Personal Dosimeter


Enquire



RadTarge-Mini | Electronic Personal Dosimeter is a wireless, all-digital electronic personal dosimeter that detects gamma and X-ray radiation. Paired with the RadMay app for iOS and Android, users can establish a lifelong personal dose of record.

Powered by YSO + SiPM and MVT

Combined, our high-performance scintillation detector and patented data sampling algorithm directly digitzes the signal and allows for a fast, highly sensitive dosimeter in a small, rugged form factor.

  • Compact size
    Lightweight and portable
  • High sensitivity
    Wide range and fast response
  • Real-time alarm
    Audible, visible, and vibrating alert options
  • Bluetooth 4.0
    Wireless communication



Track stats with RadMay

Pair RadTarge-Mini to RadMay to collect and store time, dose, and location data in one place.

  • 3-in-1 measurement
    Time, dose, and location
  • Location mapping
    View global dose distribution and movement track log
  • Cloud-based data storage
    Data in built-in memory uploaded to server
  • Lifetime personal dose management
    Information saved to RadMay account

Technical Specifications

Detector

YSO Scintillator + SiPM

Type of Radiation Detected

Gamma, X-Ray

Energy Range

30 keV–3 MeV

Dose Rate Range

1 μrem/h–10 rem/h (0.01 μSv/h–100 mSv/h)

Integrated Dose Range

1 μrem–999 rem (0.01 μSv–9.99 Sv)

Sensitivity

110 cps/mrem/h (11 cps/μSv/h) (∝ Cs-137)

Energy Response

≤ ±30% (∝ Cs-137) @ 30 keV–1.5 MeV; ≤ ±50% (∝ Cs-137) @ 1.5 MeV–3 MeV

Dose Rate Linearity

≤ 20% up to 10 rem/h (100 mSv/h)

Accuracy

±20% (∝ Cs-137)

Alarm Threshold

User-set values for dose rate: 1 µrem/h–10 rem/h (0.01 µSv/h–100 mSv/h)

Alert Options

Audible (75 dB at 6 in ∕ 15 cm), Visual (LED and Display), Vibrating

Alarm Response Time

< 8s

Overload Display

Activation When > 10 rem/h (100 mSv/h)

Communications

Bluetooth, RadMay (iOS/Android App)

Ergonomics

Front-Facing Screen

Power Supply

Rechargeable Lithium-Ion Battery

Battery Life

Typically 120 h in Background Field

Display

OLED Display

Weight

2.1 oz (60 g)

Dimensions

2.4 in x 1.8 in x 0.8 in (60 mm x 46 mm x 20 mm)

Accessories

MicroUSB Cable

Initialization Time

< 2s

Operating Temperature

32–122 °F (0–50 °C)

Storage/Transport Temperature

-4–158 °F (-20–70 °C)

Relative Humidity

Up to 90% RH (Non-Condensing)

IP Rating

IP54

EMI/EMC

Exceeds IEC 61526 Requirements

FCC ID

2ALQQ-RADTARGE

CE Compliance

CE certified
