Bruker
Simultaneous PET/MR
The PET Inserts for simultaneous PET/MR imaging of mice and rats provides unique insights into molecular and functional processes, by combining the highest PET sensitivity with multi-parametric MRI imaging
Highlights
Hybrid Imaging
Total body PET - Total body MRI
Molecular Sensitivity
Full MRI Compatibility

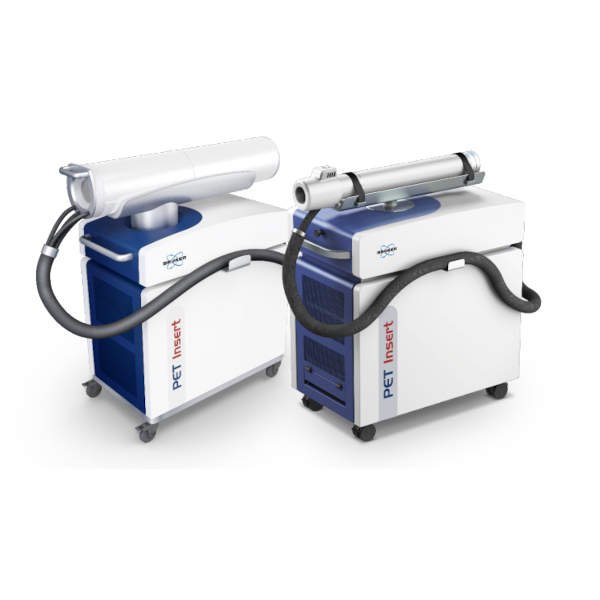

The PET inserts are designed for simultaneous PET and MR imaging of mice and rats using BioSpec MR imaging products. It allows researchers to gain unique insight on molecular and functional processes as well as a multitude of macroscopic and chemical information within a living system at the same time.
PET/MR exceeds the growing demands on preclinical imaging methods, which are required in all areas of molecular and medical research, such as oncology, neuroscience, cardiology, theranostics, immunology and development of new nuclear molecular tracers.
All PET Inserts are based on the Bruker Si PET imaging platform that is designed for highest sensitivity, high spatial resolution and quantification accuracy across the entire FOV, highest count rates and full MRI compatibility without interferences between the hybrid modalities.
Features
General
- Lightweight instruments
- Easy and safe daily insertion/removal
- fully integrated solutions for BioSpec Systems
- PET optimized total body RF coils
- PET optimized animal cradles
- Paravision 360 for hybrid scanning, image fusion, visualization and data analysis
- MR based attenuation correction for accurate PET quantification
- PMOD for advanced molecular PET data analysis and modelling
- Moveable on electronic cart with clean and safe operation
- PET stand-alone operation with multi-modal compatible animal cradles and independent PET imaging workplaces
- Designed for total body PET of mice and rats
- up to 0.7 mm spatial resolution
- 12 % sensitivity
- 150 x 80 mm FOV
- Compatible with BioSpec 30 cm MRI instruments
PET Insert Si 103
- Designed for total body PET of mice and rat head applications
- up to 0.7 mm spatial resolution
- 11 % sensitivity
- 100 x 55 mm FOV
- Compatible with BioSpec 3T MRI
- Compatible with BioSpec 20 cm and 30cm instruments
