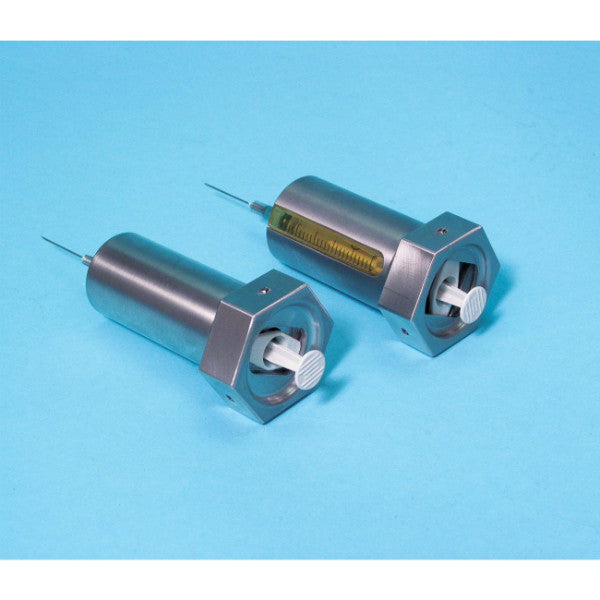

Gaard Lock™ PET Syringe Shield

The Gaard Lock™ PET Syringe Shield reduces hand exposure from syringes containing 511 keV radionuclides FDG F-18. The barrel of the shield is constructed of .34" thick (9 mm) tungsten that attenuates FDG F-18 by 88%.

The syringe shield is offered with or without a high density (5.6) flush mounted lead glass window that provides protection and visibility. A white reflective surface on the shield interior improves viewing of the syringe's markings and fluid content.

The syringe shield features a unique flanged locking mechanism that speeds the loading and unloading of the syringe, further reducing hand exposure.

Gaard Lock PET Syringe Shields accommodate the standard sized 3 cc, 5 cc and 10 cc syringes. The Gaard Lock PET Syringe Shield fits the Manual Dose Injector.

• Unique flange locking design reduces exposure with faster handling
• Constructed of .34" thick (9 mm) tungsten, attenuates FDG F-18 by 88%
• Available with or without a high density lead glass window

• Easily sanitized with alcohol wipes
• Shielding: .34" tungsten (9mm)
• Lead glass: 5.6 density

• Dimensions: 2.9" l (74 mm)
• Weight: 1.7 lb (.77 kg)

• Dimensions: 3" l (76 mm)
• Weight: 2 lb (.91 kg)

• Dimensions: 3.6" l (91 mm)
• Weight: 3 lb (1.4 kg)
