Bar Phantoms

Biodex

Bar Phantoms


Enquire

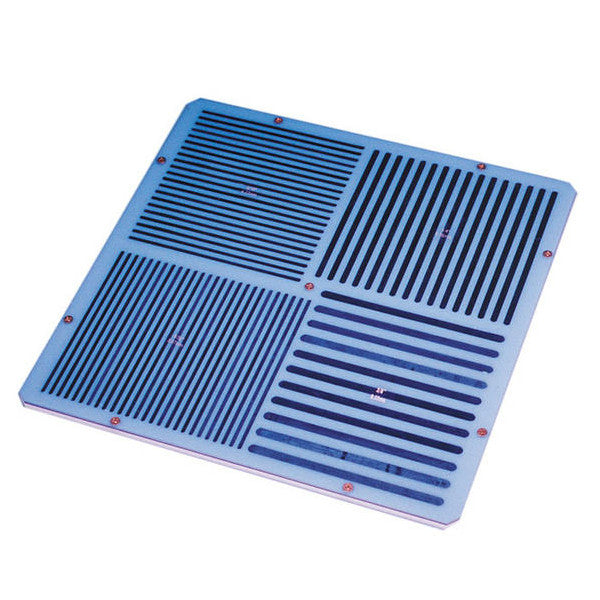

Determines Resolution of Scintillation Cameras

Four-quadrant Bar Phantoms offer precise determination of camera intrinsic resolution, collimator spatial resolution, field size and linearity. We offer a range of sizes manufactured to the highest quality standards.

Rectangular Bar Phantom

  • Dimensions: 22.25" l x 17" w x .5" h (56.5 x 43.2 x 1.27 cm)
  • Lead Bar Widths: .079", .098", .118" and .138" (2, 2.5, 3 and 3.5 mm)
  • Field Across Bar Configurations: 21" l x 15.9" w (53.3 x 40.5 cm)
  • Shipping Weight: 21 lb (10 kg)

Standard High Resolution Bar Phantom

  • Dimensions: 16.875" l x 16.875" w x .5" h (43 x 43 x 1.28 cm)
  • Lead Bar Widths: .25", .187", .156", and .125" (6.4, 4.8, 4 and 3.2 mm)
  • Field Across Bar Configurations: 15.875" l x 15.875" w (40.3 x 40.3 cm)
  • Shipping Weight: 14 lb (6 kg)

Triple Head Rectangular Bar Phantom

  • Dimensions: 11" l x 18" w x .5" h (28 x 45.7 x 1.27 cm)
  • Lead Bar Widths: .079", .098", .118" and .138" (2, 2.5, 3 and 3.5 mm)
  • Field Across Bar Configurations: 10" l x 17" w (25.4 x 43.2 cm)
  • Shipping Weight: 19 lb (8.7 kg)

Symbia and E-CAM Bar Phantom

Includes two removable screw knobs for insertion/removal of phantom from camera head.

  • Dimensions: 16" l x 21.4" w x .5" h (40.6 x 54.4 x 1.27 cm)
  • Lead Bar Widths: .079", .098", .118" and .138" (2, 2.5, 3 and 3.5 mm)
  • Field Across Bar Configurations: 20.3" l x 14.875" w (51.6 x 37.8 cm)
  • Shipping Weight: 19 lb (8.7 kg)

Cardiac Bar Phantom

  • Dimensions: 15.5" l x 9.25" w x .5" h (39.4 x 23.5 x 1.27 cm)
  • Lead Bar Widths: .079", .098", .118" and .138" (2, 2.5, 3 and 3.5 mm)
  • Field Across Bar Configurations: 14.5" l x 8.25" w (36.8 x 21 cm)
  • Shipping Weight: 15 lb (6.80 kg)
