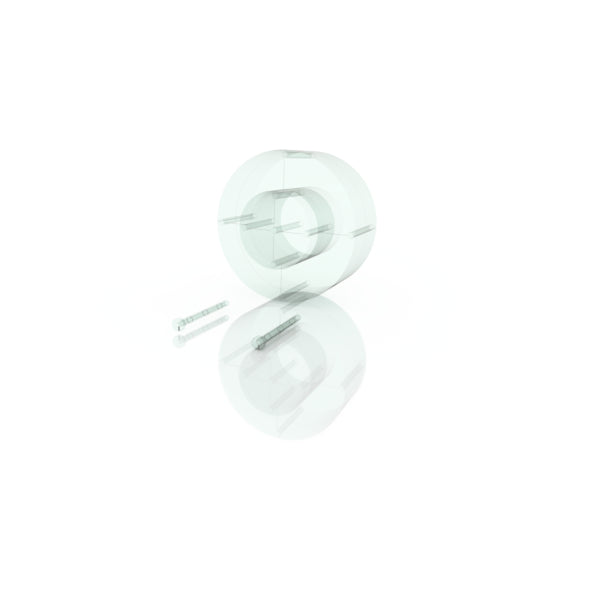

PURE CTDI

This medical imaging X-ray phantom allows for measurement of the Dose Index (DI) of the CT imaging system. The phantom consists of 2 large PMMA cylinders representing the head and body. The head is able to nest inside the body. An additional phantom with a Paediatric head which nests into the adult head is also available.

It allows for evaluation of:

• Dose Index (DI)
• CTDI100 (centre)
• CTDI100 (peripheral)
• CTDIfree air
• CTDIvol (weighted CTDIw)
• CTDIw (weighted CTDI100)

Specification:

• The head has a 160mm diameter
• The body has a 320mm diameter
• Each cylinder is 145mm long
• Holes in each cylinder for 8, 10, 13mm diameter radiation detectors
• PMMA plugs are also provided for plugging the holes when not in use
• Alignment markers

Comes with:

• Detailed user manual
• Robust carrying case for easy transport

Complies with:

• IEC 61223-3-5
• IEC 61223-3-6
• IEC 60601-2-44
